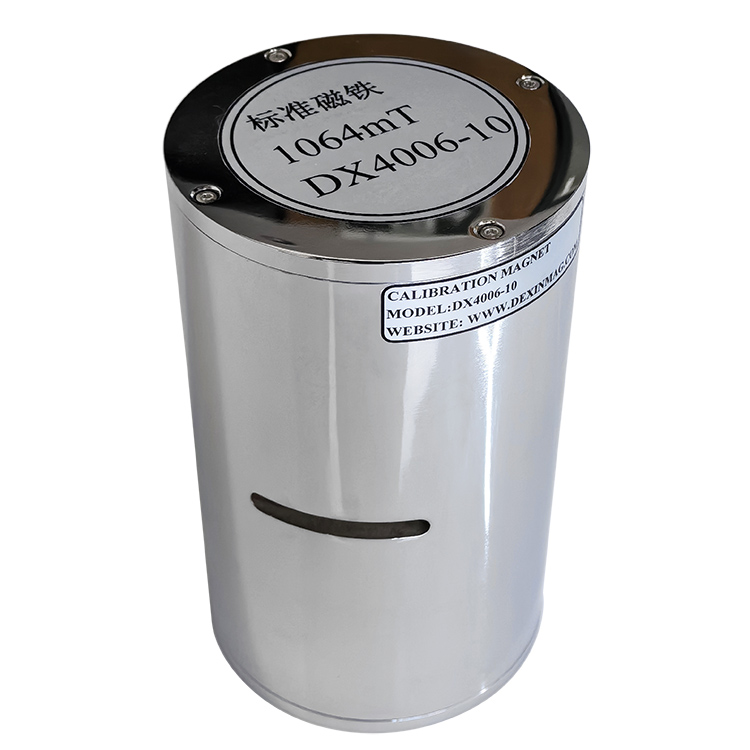

标准磁铁
标定永磁体规格参数
|
Model 型号 |
Pole Face Diameter 极面直径 (mm) |
Air gap 磁场气隙 (mm) |
Magnetic field in the center 中心磁场 (T) |
Dimension of uniform field 均匀区 (mm) |
Shape 外形尺寸 (mm) |
Weitht 重量 (Kg) |
|
DX 4010-005 |
40 |
10 |
0.05 |
Φ6*6 |
Φ82 x 102 |
2.3 |
|---|---|---|---|---|---|---|
|
DX 4010-01 |
40 |
10 |
0.1 |
Φ6*6 |
Φ82 x 102 |
2.3 |
|
DX 4010-02 |
40 |
10 |
0.2 |
Φ6*6 |
Φ82x 102 |
2.3 |
|
DX 4010-03 |
40 |
10 |
0.3 |
Φ6*6 |
Φ82 x 102 |
2.3 |
|
DX 4010-04 |
40 |
10 |
0.4 |
Φ6*6 |
Φ82 x 102 |
2.3 |
|
DX 4010-05 |
40 |
10 |
0.5 |
Φ6*6 |
Φ82 x 102 |
2.4 |
|
DX 4010-06 |
40 |
10 |
0.6 |
Φ6*6 |
Φ82 x 136 |
2.4 |
|
DX 4010-07 |
40 |
10 |
0.7 |
Φ6*6 |
Φ82 x 136 |
2.4 |
|
DX 4008-08 |
40 |
8 |
0.8 |
Φ6*5 |
Φ82 x 136 |
2.5 |
|
DX 4006-09 |
40 |
6 |
0.9 |
Φ6*3 |
Φ110 x 180 |
5.6 |
|
DX 3006-10 |
30 |
6 |
1 |
Φ5*3 |
Φ110 x 180 |
5.6 |
|
DX 3006-11 |
30 |
6 |
1.1 |
Φ5*3 |
Φ110 x 180 |
5.6 |
|
DX 2005-12 |
20 |
5 |
1.2 |
Φ2*2 |
Φ110 x 181 |
10 |
|
DX 2005-15 |
20 |
5 |
1.5 |
Φ2*2 |
Φ110 x 182 |
10 |
|
DX 2005-17 |
20 |
5 |
1.7 |
Φ2*2 |
|
12 |
|
DX 1504-19 |
15 |
4 |
1.9 |
Φ2*1.5 |
|
15 |
|
DX 1006-20 |
10 |
6 |
2.0 |
Φ1.5*1.5 |
Φ150 x 220 |
9.8 |
|

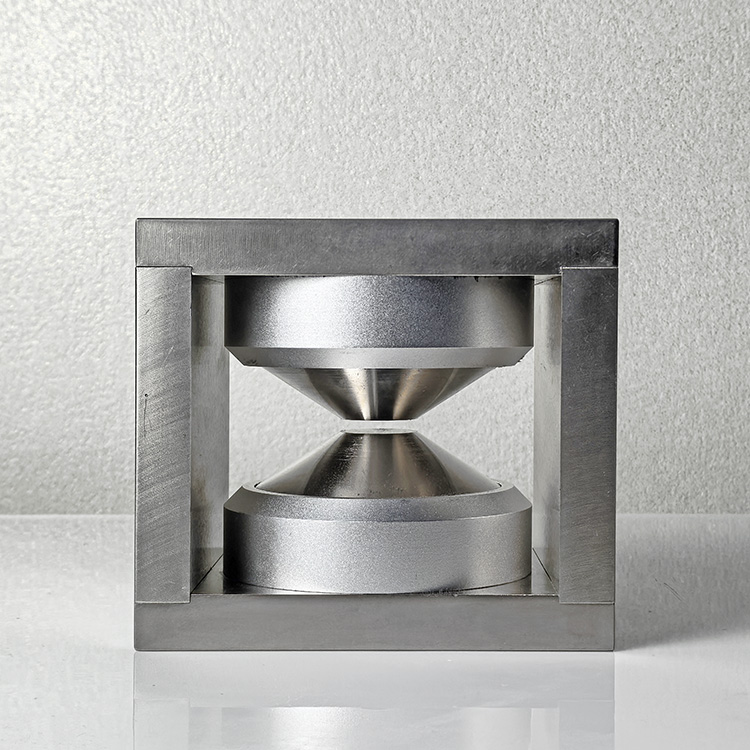

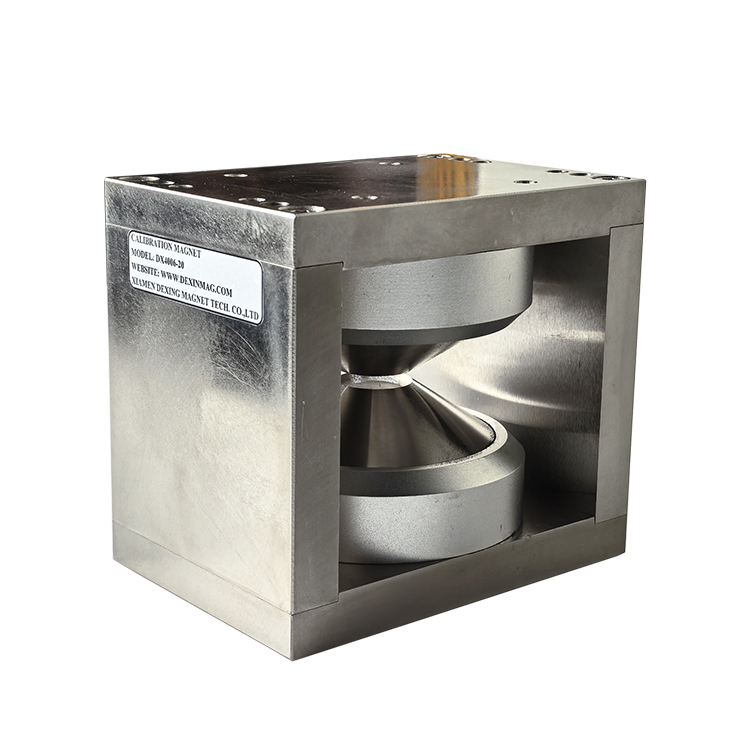

DX 3005-20 |
30 |
5 |
2.0 |
Φ5*3 |
170 x 120 x 153 |
16 |
|
Uniformity(H/H): 0.001 |
||||||
校准磁铁
